Bonnet Moulding & Clip Kit Holden HK HT HG - H1123

Bonnet Moulding & Clip Kit Holden HK HT HG - H1123

Regular price $229.96 AUD
Regular price Sale price $229.96 AUD
Sale Sold out
Tax included.

Restore a finishing detail often lost to age, damage or previous repairs with this Bonnet Moulding & Clip Kit, suited to the Holden HK, HT and HG. The kit combines a mirror-polished replacement bonnet moulding with the dedicated clips and hardware required for a secure, factory-inspired installation along the leading bonnet edge.

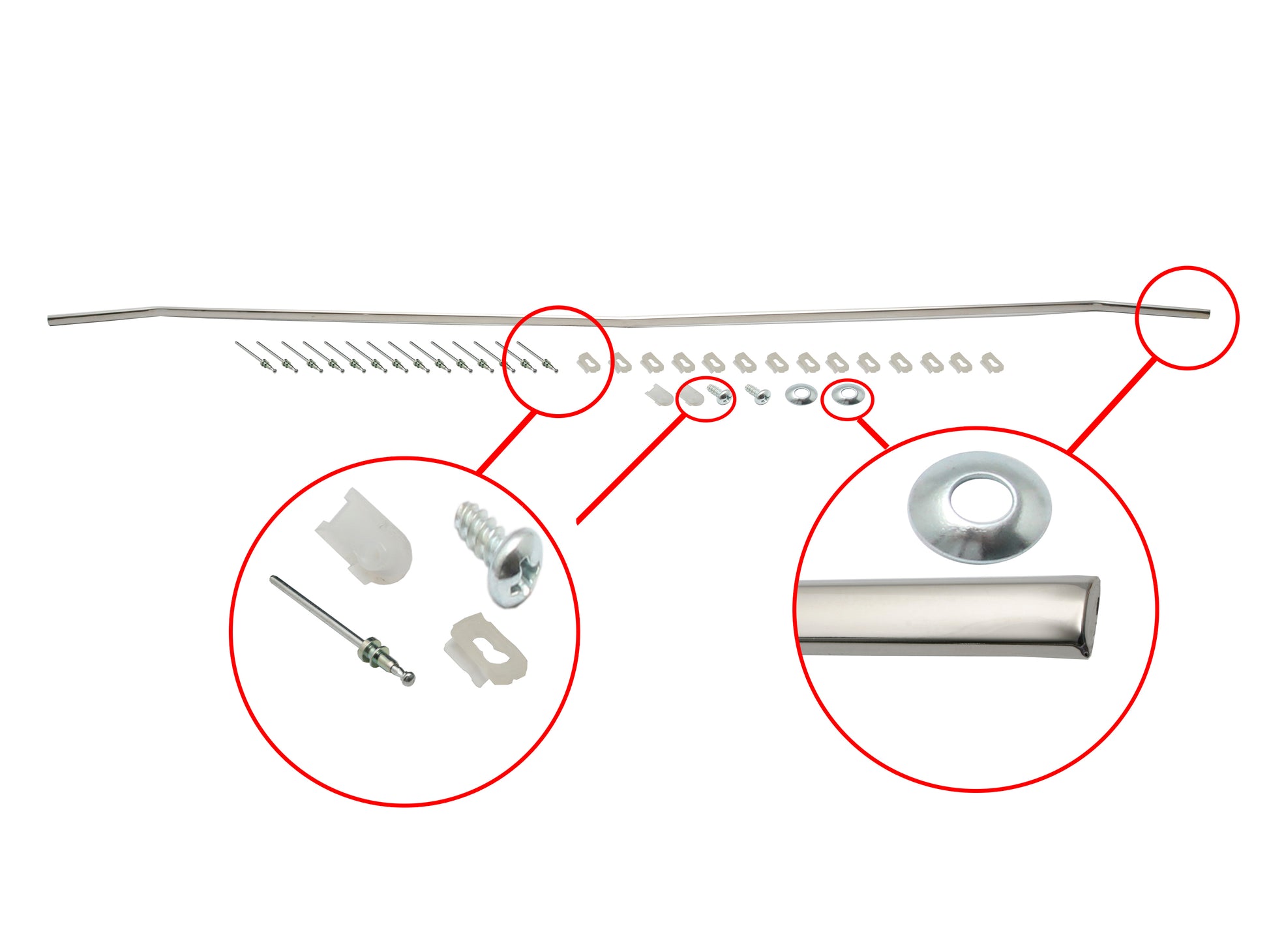

  • Complete Package: Supplied with one stainless steel bonnet moulding strip, 14 pop rivets, 14 moulding slide clips, two end clips, two cup washers and two mounting screws. Having the trim and its associated retention components together helps simplify replacement of incomplete or deteriorated original hardware.

  • Polished Brightwork: The bonnet moulding is precision roll-formed from high-grade stainless steel and polished to a deep, chrome-like finish. Stainless steel offers strong resistance to pitting, fading and rust, making it well suited to an exposed front-end location.

  • Secure, Factory-Style Retention: Slide clips locate the moulding along the bonnet mounting points, while the rivets, end clips, washers and screws support positive retention at the ends and across the trim. This helps the moulding sit flush and aligned with the bonnet profile, reducing the likelihood of vibration, rattles or wind lift.

  • Protect Panel And Paintwork: The clip-and-fastener arrangement assists in separating the metal moulding from painted bonnet surfaces, reducing direct rubbing between components. Rivets and mounting hardware also help secure the mounting locations to minimise movement that can contribute to paint damage and corrosion over time.


  • Fitment Guide:

Ensure all bonnet mounting holes are clear.

Use a pop-rivet gun to install the rivets into the bonnet.

Push the clips onto the rivets using a sideways motion.

Install the end clips by sliding each clip into the moulding.

Carefully align the end clips with the corresponding holes in the bonnet.

Hook the moulding under the edge of the clips.

Push or roll the moulding into position until it sits flush against the bonnet edge.

Fit the cup washers with the curved side facing away from the bonnet.

Insert and tighten the screws until each screw head sits against its washer.

Check that the washers are fitted correctly.

Do not install them with the cup facing the screw head, as this may dent and damage the moulding.


The Bonnet Moulding & Clip Kit delivers a detailed and durable solution for restoring the crisp front-edge brightwork that completes the classic appearance of your Holden.
