2” Mechanical Vacuum / Boost Gauge (30Hg - 30psi) with Adaptors - 524-04

2” Mechanical Vacuum / Boost Gauge (30Hg - 30psi) with Adaptors - 524-04

$64.96 AUD
$64.96 AUD
Sale Sold out
Tax included.

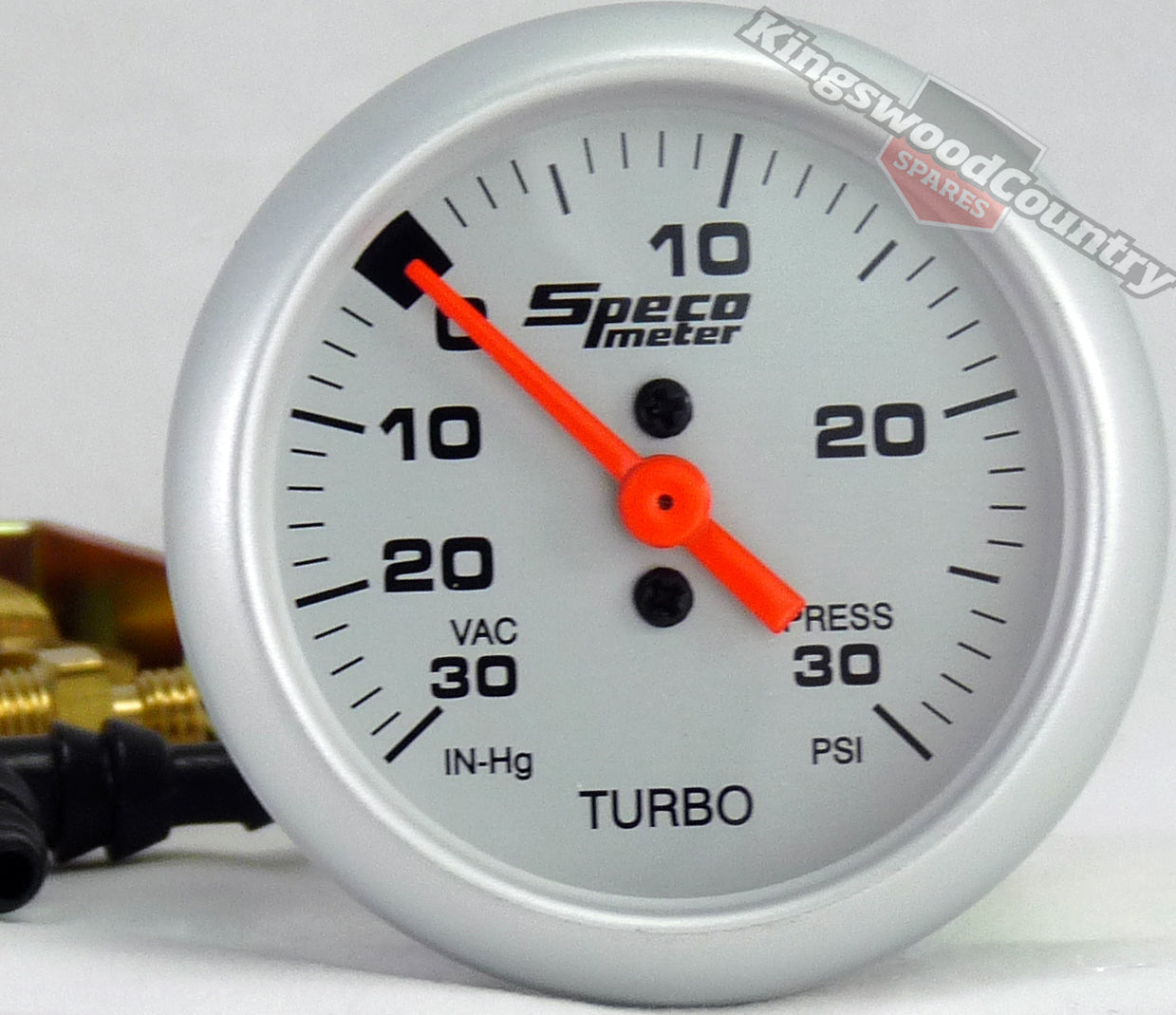

Whether you are fine-tuning a turbo setup or keeping an eye on engine efficiency, accurate manifold readings are essential. The Speco Vacuum / Boost Gauge is ideally suited to turbocharged street machines, supercharged builds, performance petrol vehicles, kit cars and hot rods, delivering precise real-time insight into both engine vacuum and boost pressure. Featuring a dual-measurement dial, it clearly displays manifold vacuum and forced induction pressure on a single face. Operating purely mechanically via an internal Bourdon tube, the gauge reads manifold air pressure changes directly — eliminating the need for electronic MAP sensors or complex wiring modules.

  • Dual Vacuum And Boost Monitoring: Measures both induction manifold vacuum and turbocharger or supercharger boost pressure.

  • Wide 270-Degree Mechanical Sweep: Expansive needle movement enhances accuracy and readability across the full range.

  • Vacuum Scale (VAC): Left-side scale reads from 0 to 30 IN-Hg (inches of mercury) for monitoring engine load and efficiency.

  • Boost Pressure Scale (PRESS): Right-side scale reads from 0 to 30 PSI (pounds per square inch) for forced induction performance tracking.

  • Purely Mechanical Operation: Utilises an internal Bourdon tube to directly measure manifold air pressure shifts.

  • Real-Time Engine Feedback: Provides immediate visual indication of boost response, throttle input and engine condition.

  • Specifications:
Diameter - 2" inches (52 mm)
Measurement Type: Mechanical (Manifold reference line / Bourdon tube)
Vacuum Scale Range: 0 to 30 IN-Hg (Inches of Mercury)
Boost Pressure Scale Range: 0 to 30 PSI (Pounds per Square Inch)
Internal Finish - Silver face, Black markings, Red needle
External Finish - Silver bezel
Fittings Included - Mounting bracket, terminal screws, nylon tube, olives, 2 x compression nuts 5/16", T piece, vacuum nipple 5/16", plus adaptors - 5/16" M x 1/8" M, 1/8" F x 1/4" M

From diagnosing vacuum leaks to monitoring peak boost under load, the Speco Vacuum / Boost Gauge delivers reliable, mechanical accuracy to help you get the most from your performance setup.
